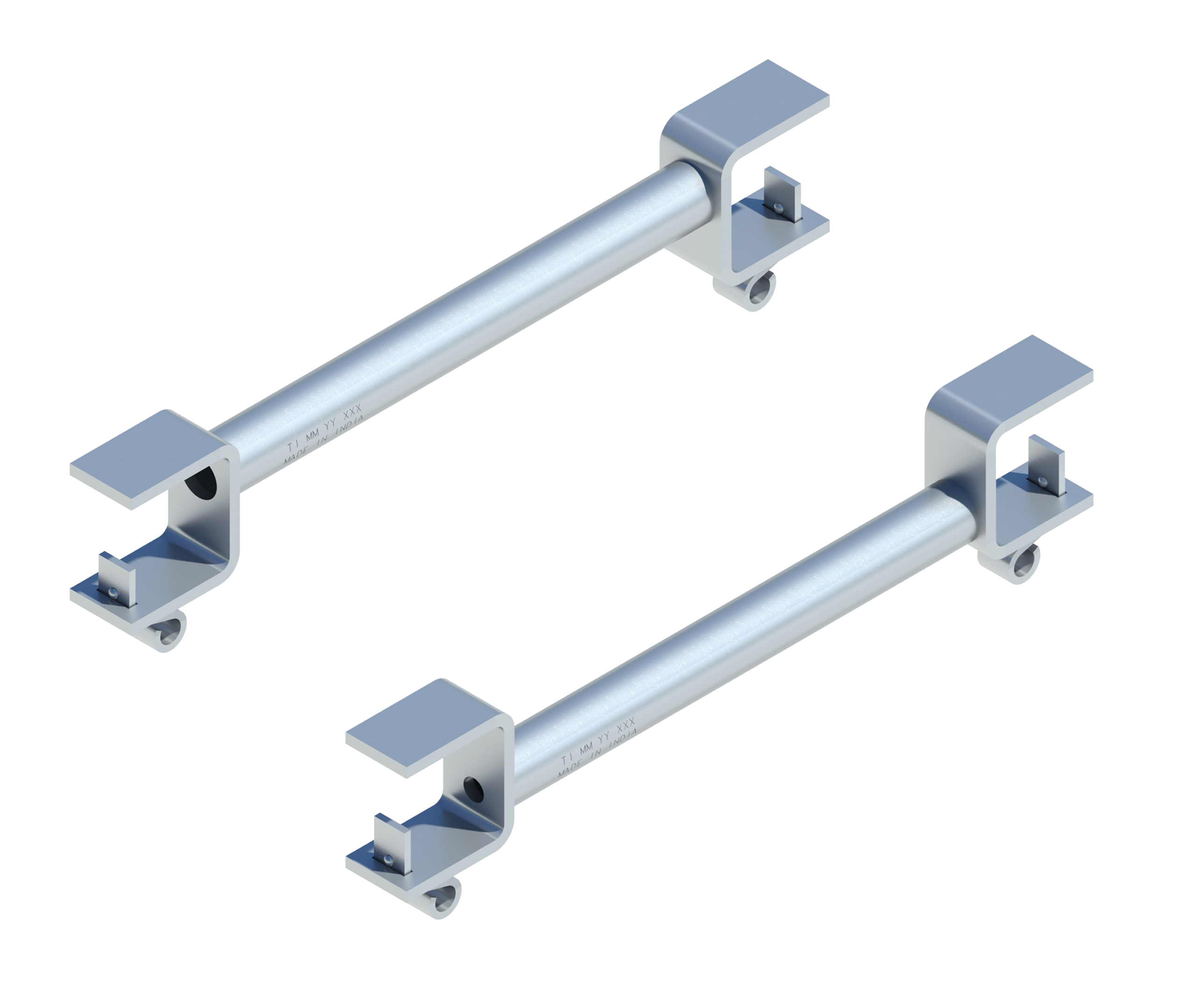

Plank To Plank Transom – SSP & Canadian Type
Use:
Plank to plank is used to accommodate planks & walkways creating space in between the bays of scaffold. Both the ends of the transom is attached to the planks.
Material:
High Strength Steel
Finish:
Hot Dip Galvanized
Plank to Plank Transom
| PRODUCT CODES | DESCRIPTION | EFFECTIVE LENGTH | WEIGHT IN KGS | WEIGHT IN LBS |
|---|---|---|---|---|
| SPSITPP1 | Plank To Plank Transom - One Board | 0.227m (8.9") | 3.8 | 8.3 |
| SPSITPP2 | Plank To Plank Transom - Two Board | 0.467m (18.4") | 4.6 | 10.2 |
| SPSITPP3 | Plank To Plank Transom - Three Board | 0.707m (27.8") | 5.5 | 12.0 |
PLANK TO PLANK TRANSOM-SSP TYPE
| PRODUCT CODE | DESCRIPTION | EFFECTIVE LENGTH (Inch) | EFFECTIVE LENGTH (mm) | WEIGHT (Lbs) | WEIGHT (Kg) |
|---|---|---|---|---|---|
| SPSITPP1-SSP | Plank To Plank Transom - One Board | 8.9" | 227.0 | 8.3 | 3.8 |
| SPSITPP2-SSP | Plank To Plank Transom - Two Board | 18.0" | 416.0 | 10.4 | 4.7 |
| SPSITPP3-SSP | Plank To Plank Transom - Three Board | 25.0" | 693.0 | 12.2 | 5.5 |
