Adjustable Heads
Use:
Adjustable Four Way-Head is designed to work with H20 beams. Adjustable head in Two-way Head, 8”x9” can be used at the top or bottom of System Scaffold. The U-Shaped head is used to center the scaffold on a beam when building up off of a beam or when supporting a beam in a shoring application.
Material:
High Strength Steel
Finish:
Hot Dip Galvanized

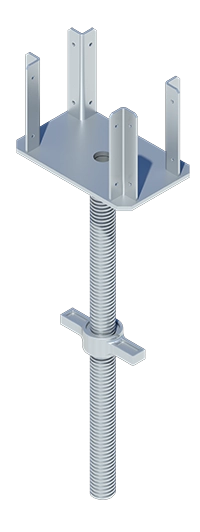

ADJUSTABLE FOUR WAY-HEAD
| PRODUCT CODES | MAXIMUM EXTENSION | WEIGHT IN KG | WEIGHT IN LBS |
|---|---|---|---|
| SSI-TR5001 | 0.45m (18") | 6.4 | 14.2 |

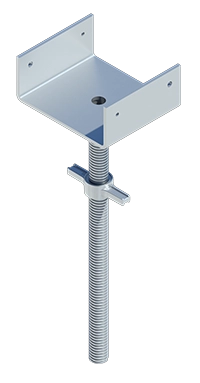

ADJUSTABLE U-HEAD 8” X 9”
| PRODUCT CODES | EXTENSION IN INCH | WEIGHT IN KG | WEIGHT IN LBS |
|---|---|---|---|
| RUSJ | 450mm (17.7") | 7.9 | 17.4 |
ADJUSTABLE TWO WAY U-HEAD
| PRODUCT CODES | MAXIMUM EXTENSION | SIZE OF A | SIZE OF B | WEIGHT IN KG | WEIGHT IN LBS |
|---|---|---|---|---|---|
| RUSJ-SD-89 | 535.0mm (21") | 228.6mm (9”) | 101.6mm (4") | 8.5 | 18.7 |
| RUSJ-SD-810 | 535.0mm (21") | 266.7mm (10.5”) | 127.0mm (5") | 8.6 | 18.9 |
