Ledger To Plank Transom – SSP & Canadian Type
Use:
Ledger to plank is used to accommodate planks & walkways creating space in between the bays of scaffold. The one end of the transom is fitted to the horizontal ledger and other one is attached to the plank as shown.
Material:
High Strength Steel
Finish:
Hot Dip Galvanized

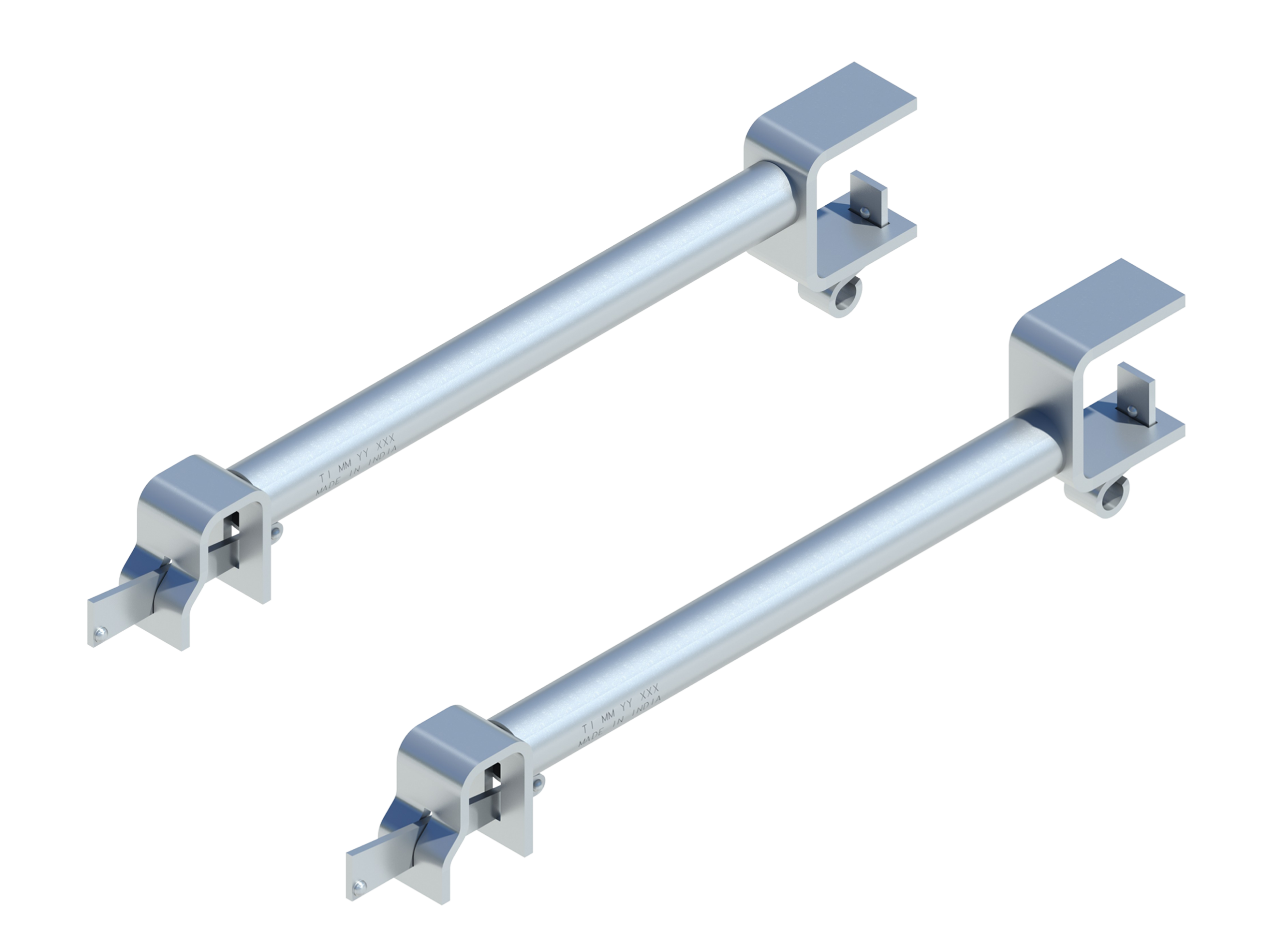

Ledger to Plank Transom
| PRODUCT CODES | DESCRIPTION | EFFECTIVE LENGTH | WEIGHT IN KGS | WEIGHT IN LBS |
|---|---|---|---|---|
| SPSITHP1 | Ledger To Plank One Board | 0.270m (10.6") | 3.5 | 7.7 |
| SPSITHP2 | Ledger To Plank Two Board | 0.510m (20") | 4.3 | 9.5 |
| SPSITHP3 | Ledger To Plank Three Board | 0.750m (29.5") | 5.2 | 11.4 |
LEDGER TO PLANK TRANSOM-SSP TYPE
| PRODUCT CODE | DESCRIPTION | EFFECTIVE LENGTH (Inch) | EFFECTIVE LENGTH (mm) | WEIGHT (Lbs) | WEIGHT (Kg) |
|---|---|---|---|---|---|
| SPSITHP1-SSP | Ledger To Plank One Board | 10.8" | 274.0 | 7.9 | 3.6 |
| SPSITHP2-SSP | Ledger To Plank Two Board | 19.8" | 504.0 | 9.6 | 4.4 |
| SPSITHP3-SSP | Ledger To Plank Three Board | 28.8" | 733.0 | 11.4 | 5.2 |
