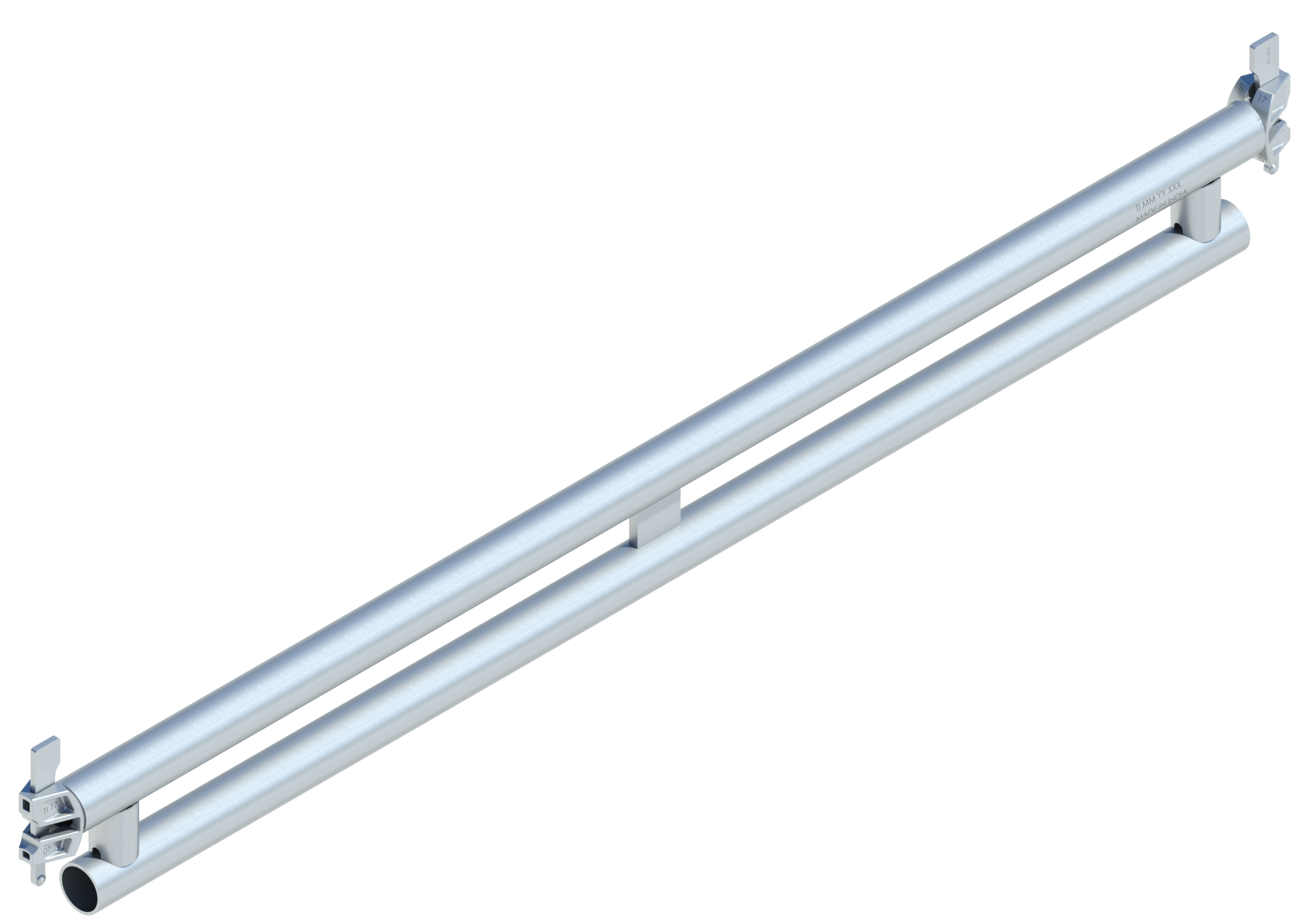

Double Ledgers
Use:
Double Ledgers are designed to be load-bearing transoms and should be used when the work bay needs to support a higher load.
Material:
High Strength Steel
Finish:
Hot Dip Galvanized
| PRODUCT CODES | SIZE | WEIGHT IN KGS | WEIGHT IN LBS |
|---|---|---|---|
| RDL-50 | 1.524m (5'-0") | 11.5 | 26.4 |
| RDL-52 | 1.572m (5'-2") | 12.0 | 26.8 |
| RDL-60 | 1.829m (6'-0") | 13.8 | 31.9 |
| RDL-70 | 2.133m (7'-0") | 16.1 | 36.9 |
| RDL-80 | 2.438m (8'-0") | 18.6 | 41.8 |
| RDL-86 | 2.572m (8'-6") | 18.9 | 42.24 |
| RDL-90 | 2.743m (9'-0") | 21.1 | 47.8 |
| RDL-100 | 3.048m (10'-0") | 22.5 | 52.6 |
