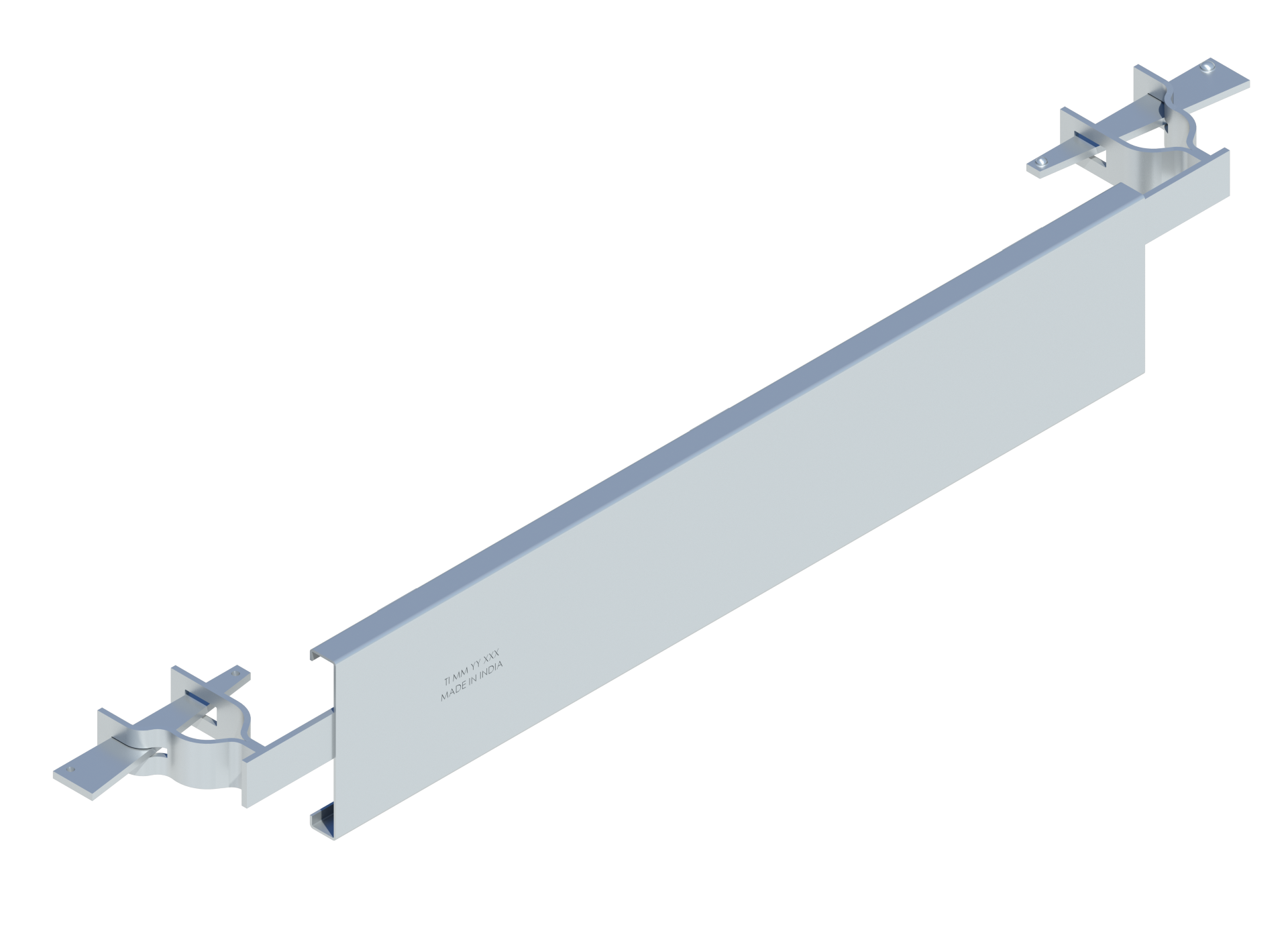

Universal Toe Board
Use:
The Universal Toe board is designed to enclose the bay at the plank level, preventing small tools, debris and other items from falling off the planked platform.
Material:
Structural steel
Finish:
Hot Dip Galvanized.
| PRODUCT CODES | SIZE | WEIGHT IN KG | WEIGHT IN LBS |
|---|---|---|---|
| UTB110 | 0.5596m (1'-10") | 3.2 | 7.1 |
| UTB20 | 0.610m (2'-0") | 3.4 | 7.5 |
| UTB30 | 0.914m (3'-0") | 4.4 | 9.7 |
| UTB36 | 1.067m (3'-6") | 5.1 | 11.3 |
| UTB36S | 1.088m (3'-6.8") | 5.2 | 11.4 |
| UTB40 | 1.219m (4'-0") | 5.6 | 12.4 |
| UTB41 | 1.250m (4'-1") | 5.7 | 12.6 |
| UTB50 | 1.524m (5'-0") | 6.6 | 14.6 |
| UTB52 | 1.572m (5'-2") | 6.8 | 15.0 |
| UTB60 | 1.829m (6'-0") | 7.6 | 16.8 |
| UTB70 | 2.133m (7'-0") | 8.6 | 19.0 |
| UTB80 | 2.438m (8'-0") | 9.8 | 21.7 |
| UTB86 | 2.572m (8'-6") | 10.3 | 22.7 |
| UTB90 | 2.743m (9'-0") | 10.3 | 22.7 |
| UTB100 | 3.048m (10'-0") | 11.9 | 26.2 |
