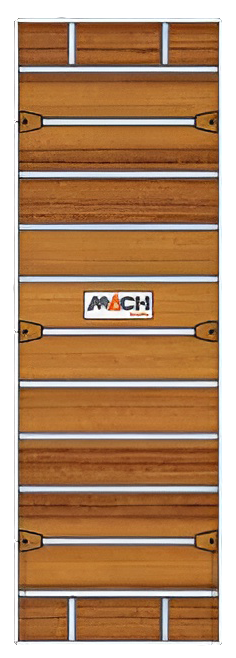

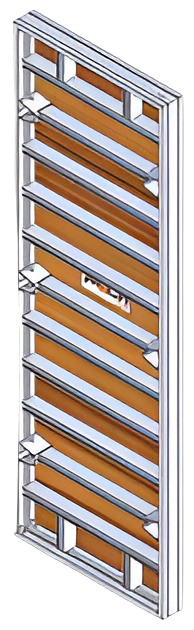

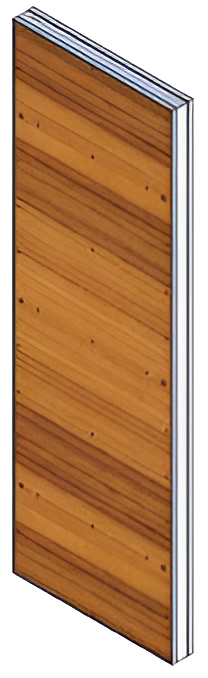

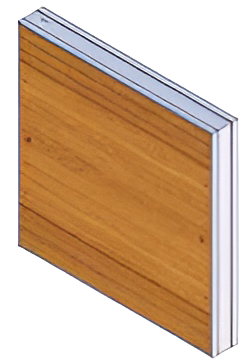

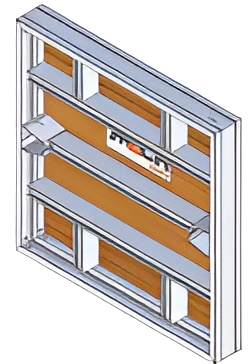

WALL PANELS
Wall panels are the fastest way securing structure for concrete wall.
Material:
Aluminium Alloy 6061-T6 / Equivalent
Finish:
Mill Finish
| Product Code | Description | Width X Height (Ft-Inch) | Width X Height (Meter) | Weight (Lbs) | Weight (Kgs) |
|---|---|---|---|---|---|
| MAP-WP-IM-30-90 | Aluminium Wall Panel With Plywood | 3' X 9' | 0.9 X 2.7 | 145.09 | 65.8 |
| MAP-WP-IM-26-90 | Aluminium Wall Panel With Plywood | 2'6" X 9' | 0.7 X 2.7 | 117.95 | 53.5 |
| MAP-WP-IM-20-90 | Aluminium Wall Panel With Plywood | 2' X 9' | 0.6 X 2.7 | 100.53 | 45.6 |
| MAP-WP-IM-16-90 | Aluminium Wall Panel With Plywood | 1'6" X 9' | 0.4 X 2.7 | 84.66 | 38.4 |
| MAP-WP-IM-10-90 | Aluminium Wall Panel With Plywood | 1' X 9' | 0.3 X 2.7 | 67.24 | 30.5 |
| MAP-WP-IM-30-60 | Aluminium Wall Panel With Plywood | 3' X 6' | 0.9 X 1.8 | 101.41 | 46.0 |
| MAP-WP-IM-26-60 | Aluminium Wall Panel With Plywood | 2'6" X 6' | 0.7 X 1.8 | 82.23 | 37.3 |
| MAP-WP-IM-20-60 | Aluminium Wall Panel With Plywood | 2' X 6' | 0.6 X 1.8 | 60.89 | 31.7 |
| MAP-WP-IM-16-60 | Aluminium Wall Panel With Plywood | 1'6" X 6' | 0.4 X 1.8 | 58.86 | 26.7 |
| MAP-WP-IM-10-60 | Aluminium Wall Panel With Plywood | 1' X 6' | 0.3 X 1.8 | 46.30 | 21.0 |
| MAP-WP-IM-30-30 | Aluminium Wall Panel With Plywood | 3' X 3' | 0.9 X 0.9 | 57.98 | 26.3 |
| MAP-WP-IM-26-30 | Aluminium Wall Panel With Plywood | 2'6" X 3' | 0.7 X 0.9 | 46.52 | 21.1 |
| MAP-WP-IM-20-30 | Aluminium Wall Panel With Plywood | 2' X 3' | 0.6 X 0.9 | 39.02 | 17.7 |
| MAP-WP-IM-16-30 | Aluminium Wall Panel With Plywood | 1'6" X 3' | 0.4 X 0.9 | 32.84 | 14.9 |
| MAP-WP-IM-10-30 | Aluminium Wall Panel With Plywood | 1' X 3' | 0.3 X 0.9 | 25.35 | 11.5 |
